Razor Barbed Wire
| Place of Origin: | Anping County, Hebei Province,China |
| Brand Name: | Huacheng Hardware Wire Mesh Supply |
| Elivery Time: | 15days after deposit |
E-mail: sales@wirecloth-wiremesh.com
Mob/Wechat: +86-19833809900
Anping Huacheng is a professional manufacturer of Razor Barbed Wire, offering a wide range of high-strength fencing solutions designed for advanced perimeter security. Razor Barbed Wire is manufactured using galvanized or stainless steel and features sharp-edged blades and reinforced core wire, making it ideal for high-security applications.
Material and Surface Treatment

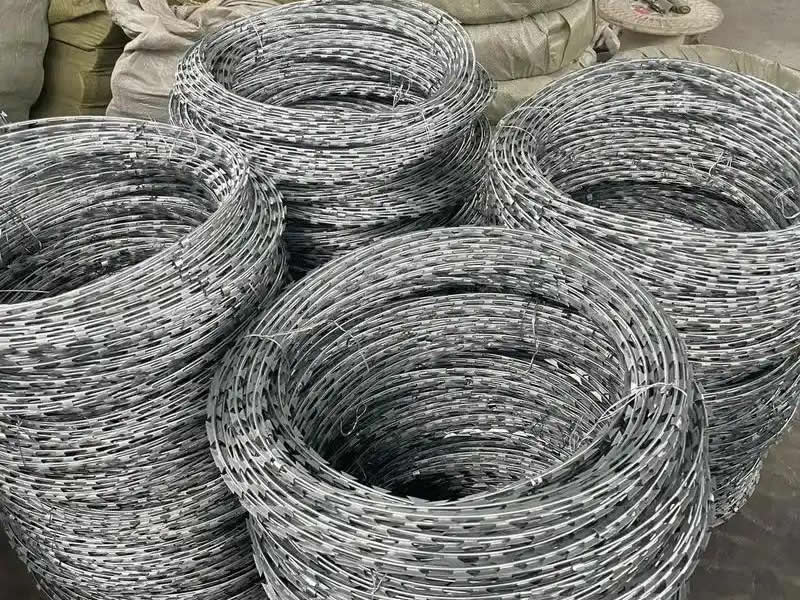

Our Razor Barbed Wire is made from premium low-carbon steel or stainless steel. The surface is treated through hot-dip galvanizing, electro-galvanizing, or left untreated for stainless steel versions. These finishes ensure long-term corrosion resistance and stable outdoor performance.
Types of Razor Barbed Wire
We offer various types to meet different protection levels:

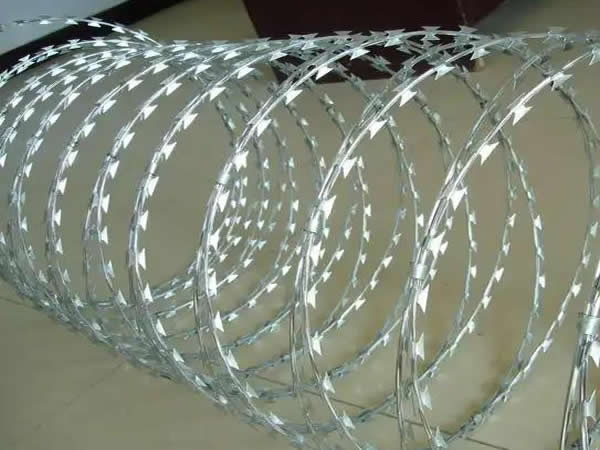

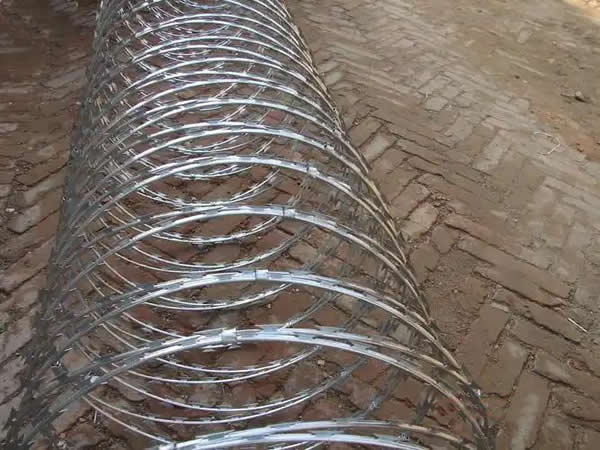

- Spiral Razor Cross-Barbed Wire: Double coil design with strong clamp points, forming a cross shape when deployed.

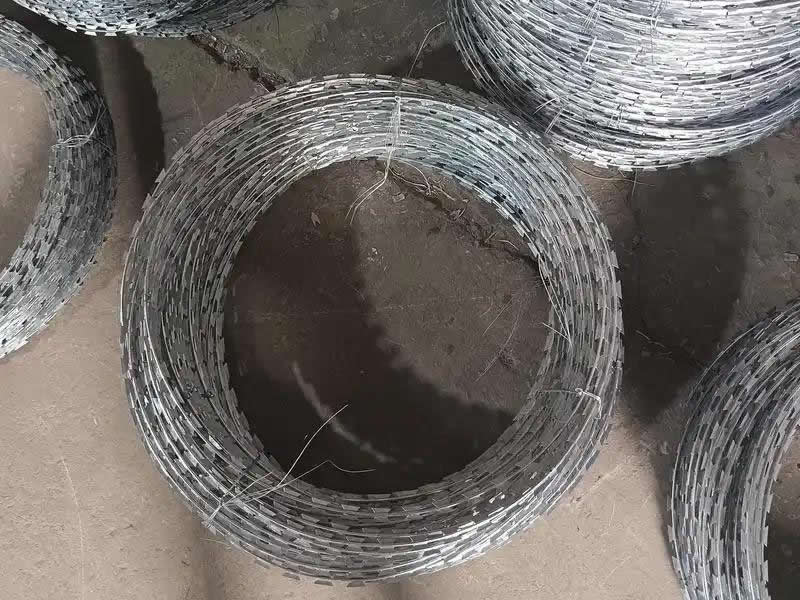

- Single-Ring Razor Wire: Natural coiled form without clips, ideal for quick installations.
- Flat Wrap and Straight Line Types: Available upon request for specific fencing requirements.
Applications

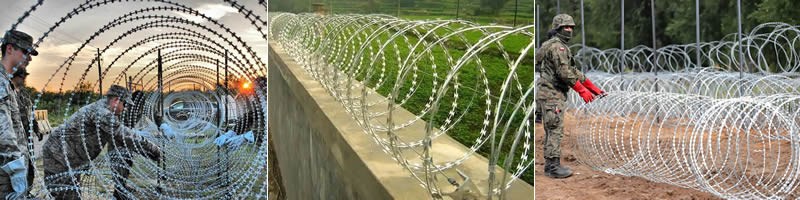

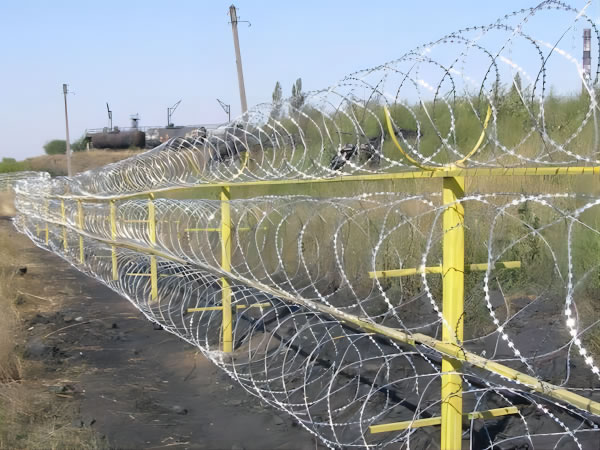

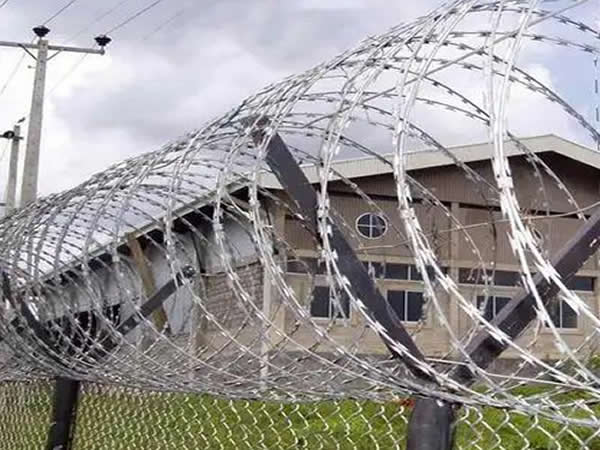

Razor Barbed Wire is widely used for securing prisons, airports, government buildings, military zones, power plants, warehouses, and private properties. It forms an effective physical barrier to prevent unauthorized access and intrusions.
Standard Blade Types
| Reference Number | Blade Style | Thickness | Wire Dia | Barb Length | Barb Width | Barb spacing |
| BTO-10 |  | 0.5±0.05 | 2.5±0.1 | 10±1 | 13±1 | 25±1 |
| BTO-12 |  | 0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 25±1 |
| BTO-18 |  | 0.5±0.05 | 2.5±0.1 | 18±1 | 15±1 | 35±1 |
| BTO-22 |  | 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 36±1 |
| BTO-28 |  | 0.5±0.05 | 2.5 | 28 | 15 | 46±1 |
| BTO-30 |  | 0.5±0.05 | 2.5 | 30 | 18 | 46±1 |
| CBT-65 |  | 0.6±0.05 | 2.5±0.1 | 65±2 | 21±1 | 101±2 |
Coil Sizes and Lengths

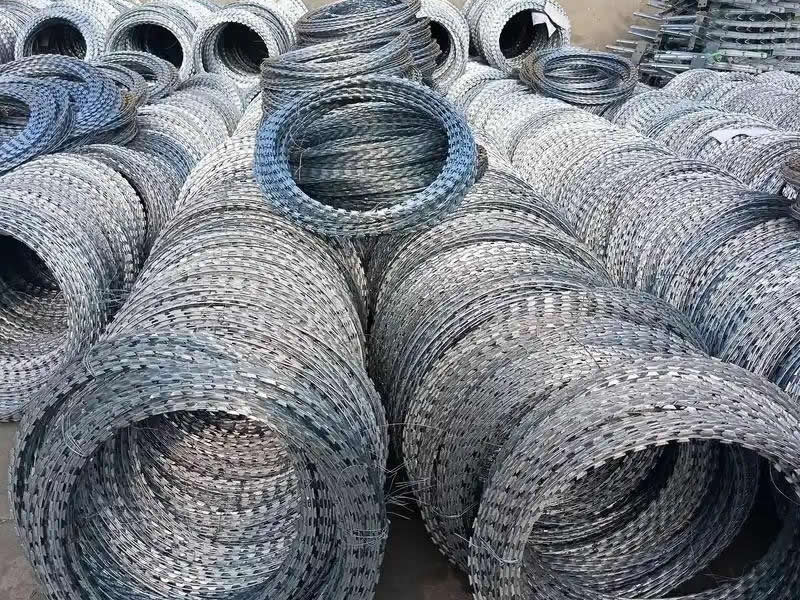

| Outside Diameter | No. of Loops | Standard Length per Coil | Type | Notes |
| 450mm | 33 | 8M | CBT-65 | Single coil |
| 500mm | 41 | 10M | CBT-65 | Single coil |
| 700mm | 41 | 10M | CBT-65 | Single coil |
| 960mm | 53 | 13M | CBT-65 | Single coil |
| 500mm | 102 | 16M | BTO-10.15.22 | Cross type |
| 600mm | 86 | 14M | BTO-10.15.22 | Cross type |
| 700mm | 72 | 12M | BTO-10.15.22 | Cross type |
| 800mm | 64 | 10M | BTO-10.15.22 | Cross type |
| 960mm | 52 | 9M | BTO-10.15.22 | Cross type |
