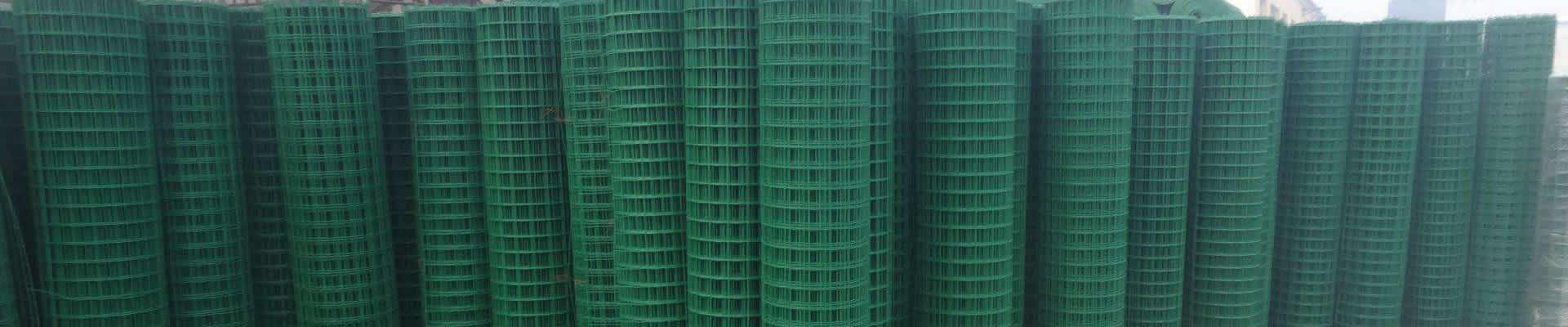

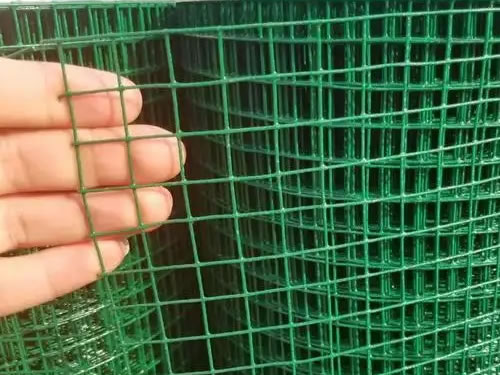

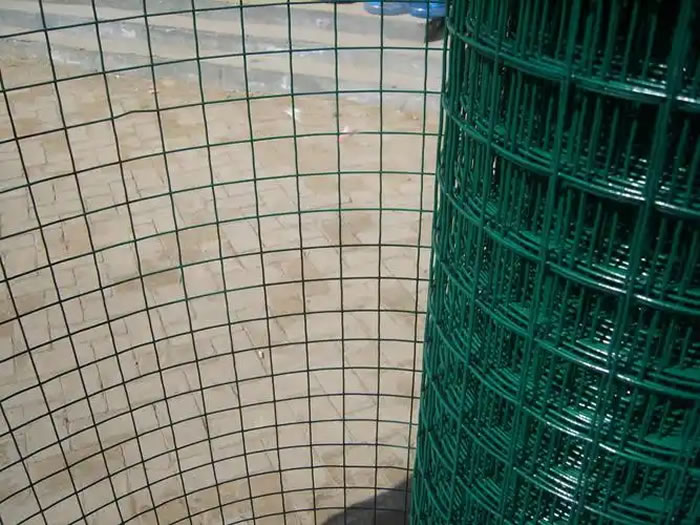

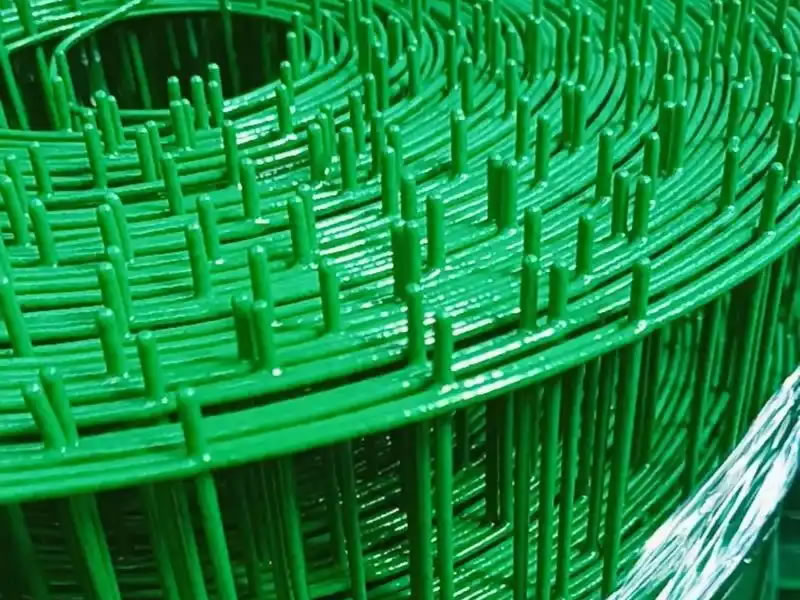

PVC Coated Welded Wire Mesh is a strong and corrosion-resistant fencing material made by welding high-quality steel wires and coating them with a durable layer of polyvinyl chloride (PVC). This coating enhances weather resistance, extends service life, and adds aesthetic value with color options such as green, black, and white. It is widely used in residential, agricultural, industrial, and commercial applications—including garden fencing, animal enclosures, machine safety guards, and building facades—offering both protection and visual appeal.

Wire Material and Surface Treatment

PVC Coated Welded Wire Mesh is made from low carbon steel wire, hot-dipped galvanized wire, or electro-galvanized wire. The wire mesh undergoes either galvanizing before welding (GBW) or galvanizing after welding (GAW), followed by PVC coating.

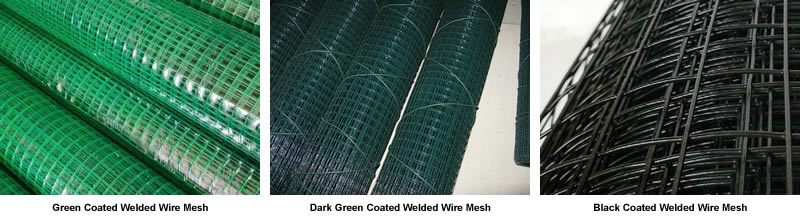

Common Colors Green (RAL6005)

• Black (RAL9005)
• White (RAL9010)
• Stone Grey (RAL7030)
• Yellow, Green,Blue, and Custom RAL Colors

Applications

• Residential Fencing: Common sizes include 1/2 inch to 1 inch mesh for security and aesthetics.
• Agricultural Uses: Meshes like 3/4 inch and 1 inch are widely used for animal enclosures and plant supports.
• Industrial Safety: Used in machine guards and protective barriers with mesh sizes from 1/2 inch to 3/4 inch.
• Gabions and Retaining Walls: Large mesh sizes (3″ or 4″) with thick wire for erosion control.
• Garden Protection: Smaller mesh sizes (1/4″ to 1/2″) effectively keep pests out.

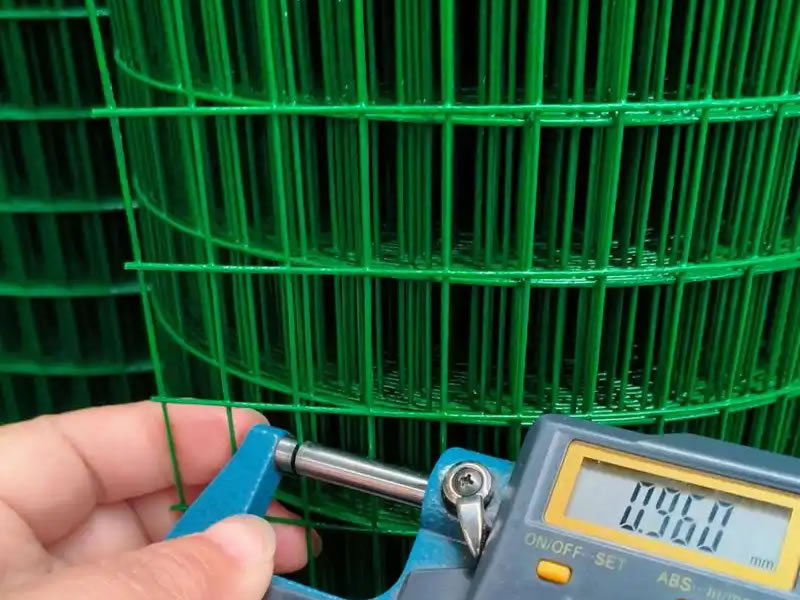

Mesh size		Wire Dia before & after PVC coat
mm	inch	Before coat	After coat
6.4	1/4 inch	0.56 – 0.71	0.90 – 1.05
9.5	3/8 inch	0.64 – 1.07	1.00 – 1.52
12.7	1/2 inch	0.71 – 1.65	1.10 – 2.20
15.9	5/8 inch	0.81 – 1.65	1.22 – 2.30
19.1	3/4 inch	0.81 – 1.65	1.24 – 2.40
25.4 × 12.7	1 × 1/2 inch	0.81 – 1.65	1.24 – 2.42
25.4	1 inch	0.81 – 2.11	1.28 – 2.90
38.1	1 1/2 inch	1.07 – 2.11	1.57 – 2.92
25.4 × 50.8	1 × 2 inch	1.47 – 2.11	2.00 – 2.95
50.8	2 inch	1.65 – 2.77	2.20 – 3.61
76.2	3 inch	1.90 – 3.50	2.50 – 4.36
101.6	4 inch	2.20 – 4.00	2.85 – 4.88

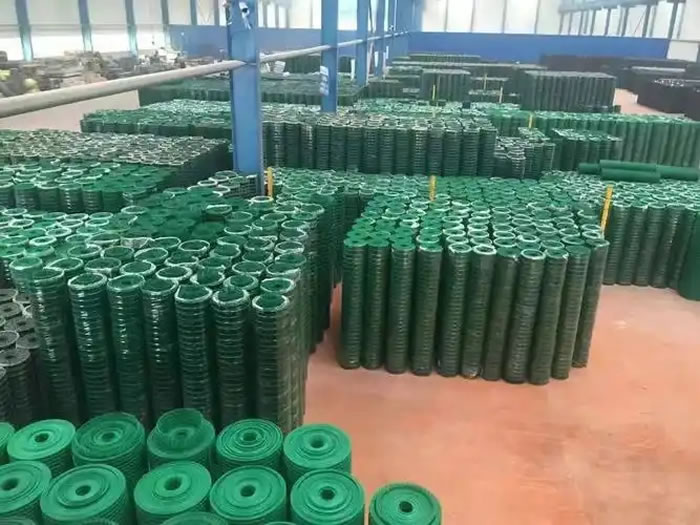

Packaging Options

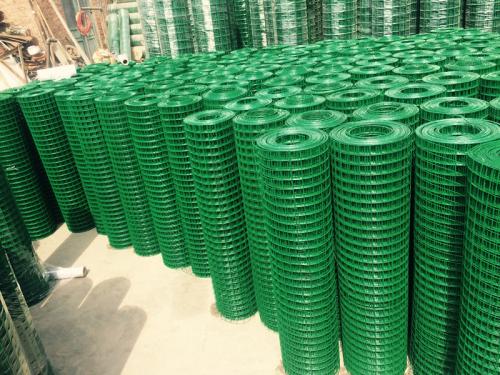

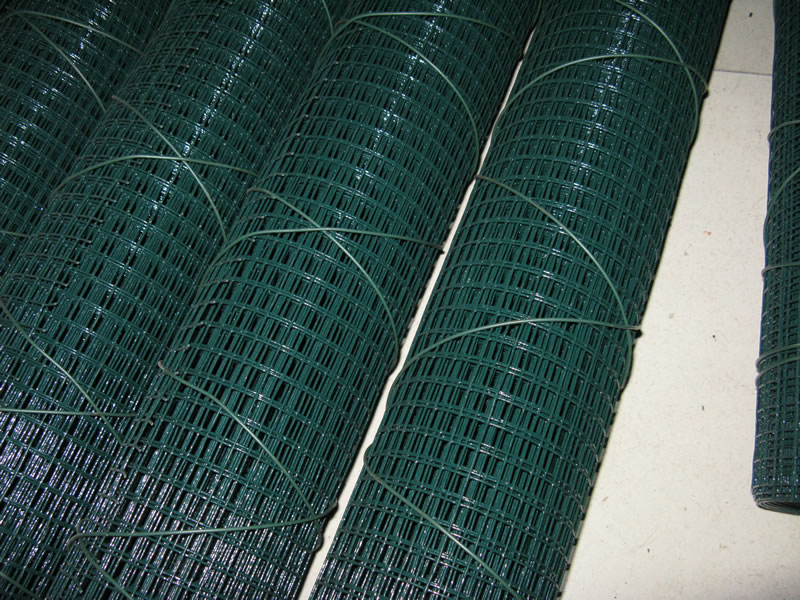

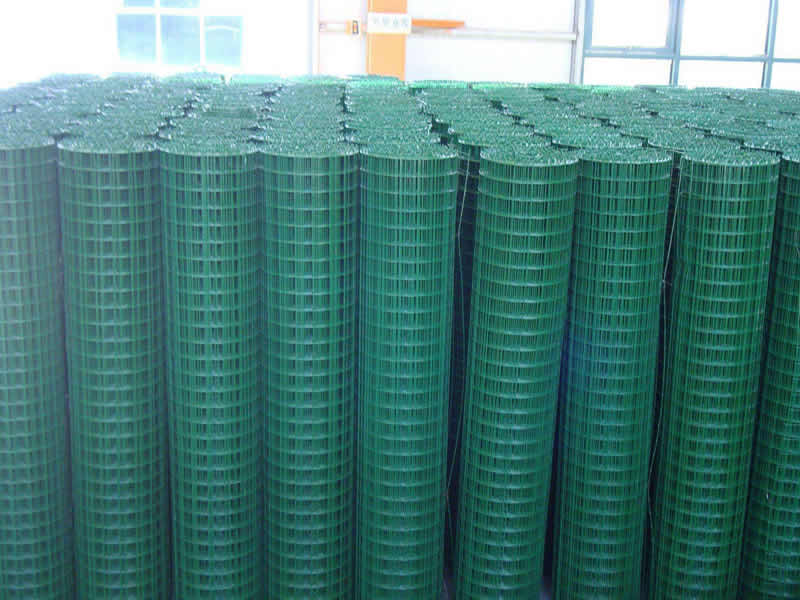

Available in rolls or panels, wrapped in plastic film, tied with galvanized wire, or packed in wooden boxes or pallets. Custom packaging available upon request.
