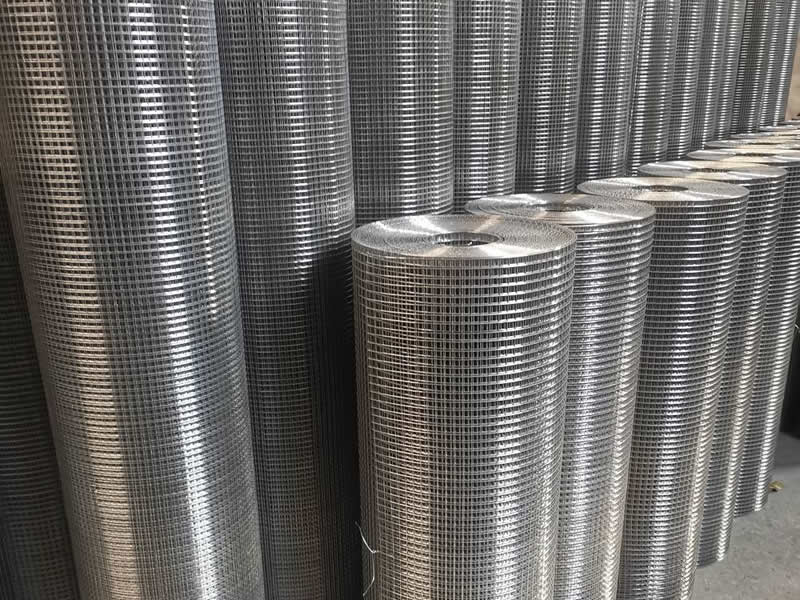

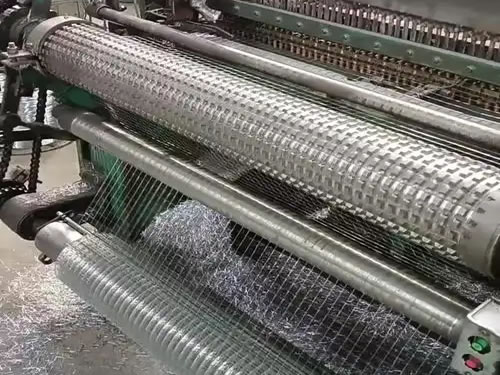

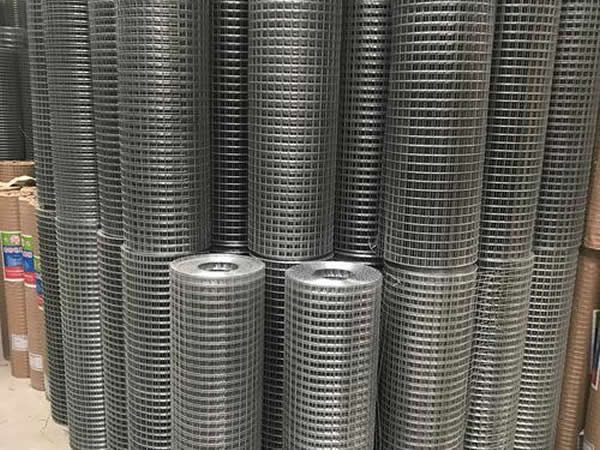

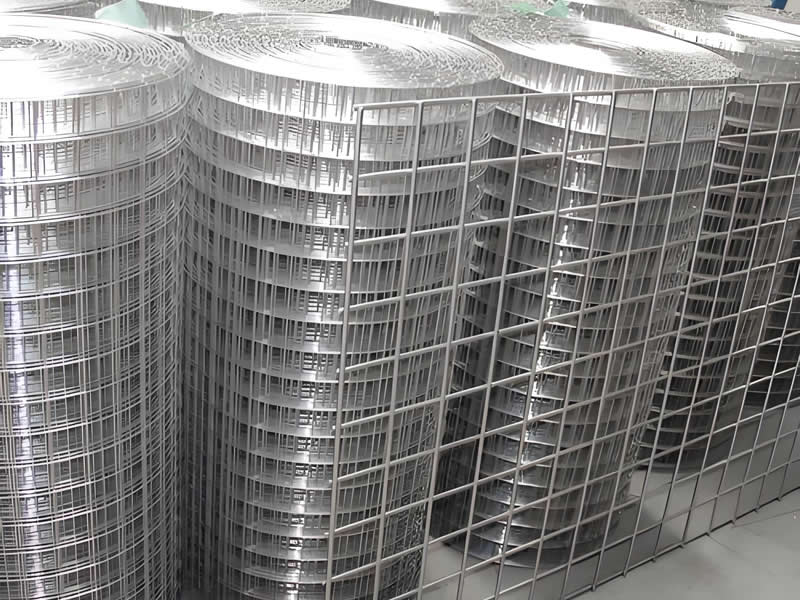

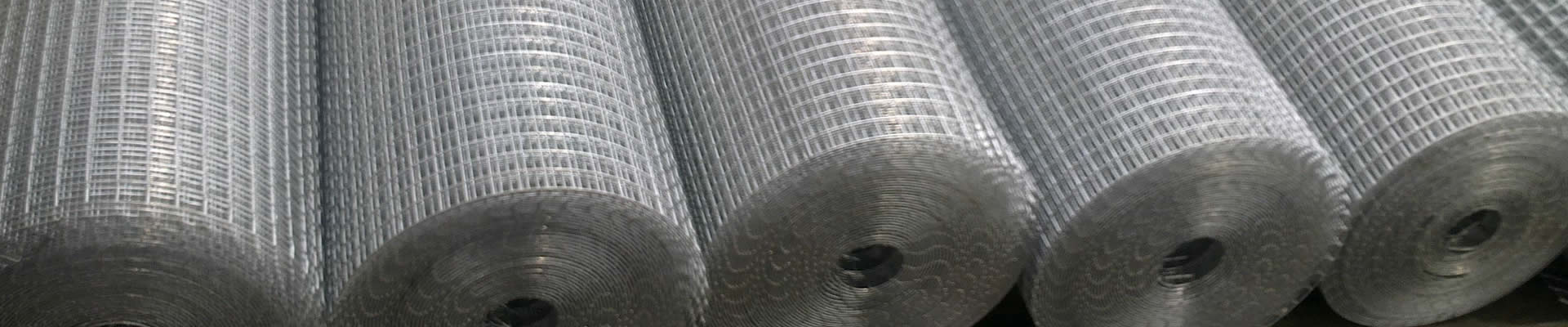

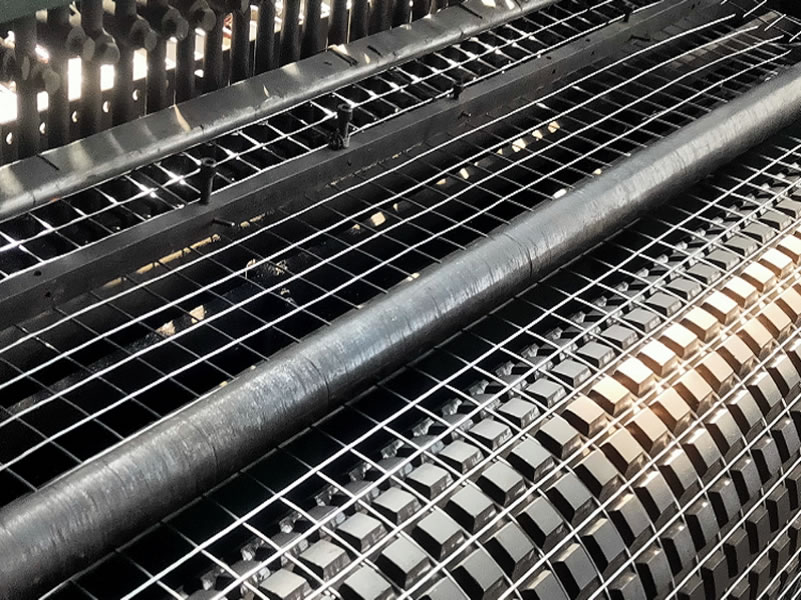

Electro Galvanized Welded Wire Mesh is a lightweight yet strong mesh product made by welding low carbon steel wires into a precise grid pattern, followed by electroplating with a thin layer of zinc. This electro-galvanization process provides a smooth, bright, and uniform finish that enhances corrosion resistance in mild environments. Known for its clean appearance and affordability, it is widely used in indoor applications such as partitions, display racks, shelves, cages, and protective barriers.

Surface Treatment and Coating

Electro Galvanized Welded Wire Mesh is zinc-coated after or before welding:
-Galvanized After Welding (GAW): Provides stronger corrosion resistance at weld points.
-Galvanized Before Welding (GBW): Offers clean appearance and consistent finish.

Typical zinc coating: 15g/m² – 30g/m²

Opening		Wire Diameter	Width	Length
In inch	In metric unit
1/4″ x 1/4″	6.4 x 6.4mm	BWG26-21	0.3m-2.0m	5m-50m
3/8″ x 3/8″	10.6x 10.6mm	BWG26-19
1/2″ x 1/2″	12.7 x 12.7mm	BWG25-16
5/8″ x 5/8″	16x 16mm	BWG25-16
3/4″ x 3/4″	19.1 x 19.1mm	BWG25-16
1″ x 1/2″	25.4x 12.7mm	BWG22-14
1″ x 1″	25.4x 25.4mm	BWG22-14
1-1/4″ x 1-1/4″	30 x 30mm	BWG20-12
1-1/2″ x 1-1/2″	38 x 38mm	BWG20-12
1″ x 2″	25.4 x 50.8mm	BWG19-12
2″ x 2″	50.8 x 50.8mm	BWG18-12
2” x 3″	50.8 x 76.2mm	BWG16-12
2” x 4″	50.8 x 101.6mm	BWG16-12

Applications

• Garden and field fencing
• Small animal cages and enclosures
• Interior partitions and shelving
• Reinforcement in concrete and plastering
• Ventilation screens and HVAC filters
• Agricultural crop protection

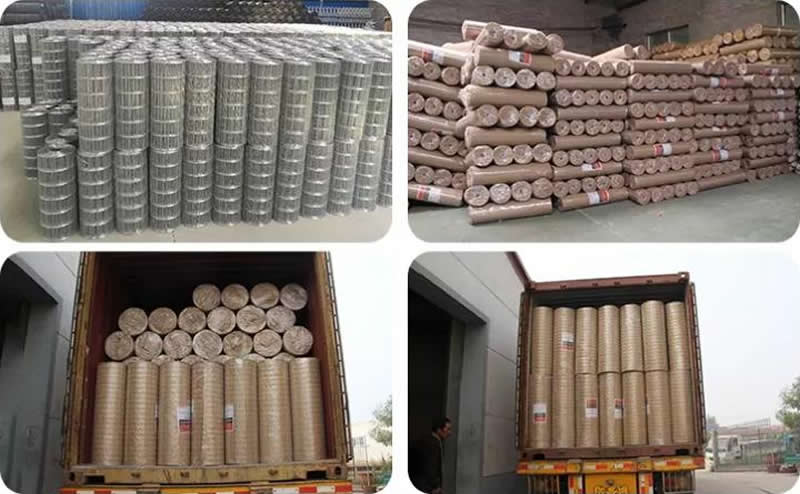

Packaging

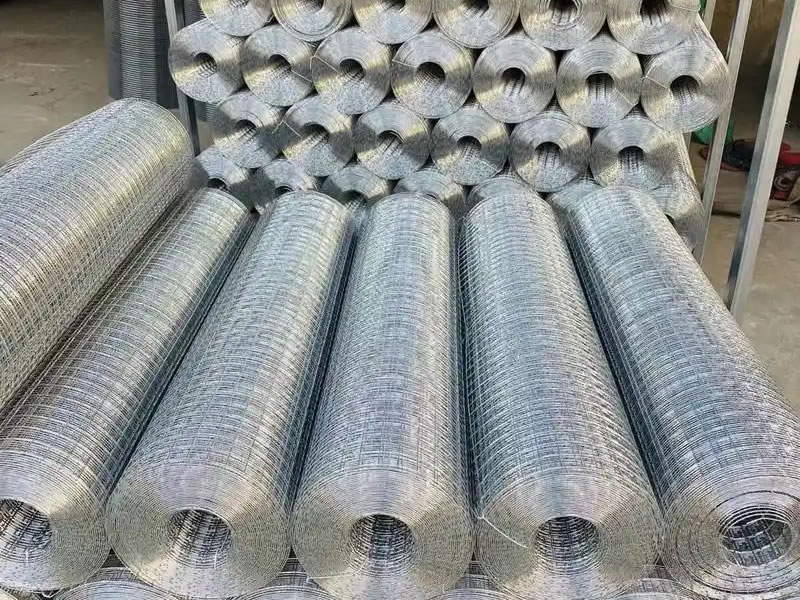

• Rolls wrapped with paper, then woven bags or plastic film
• Panels stacked and secured for containerized shipment
• Custom packaging and labeling available for bulk orders
