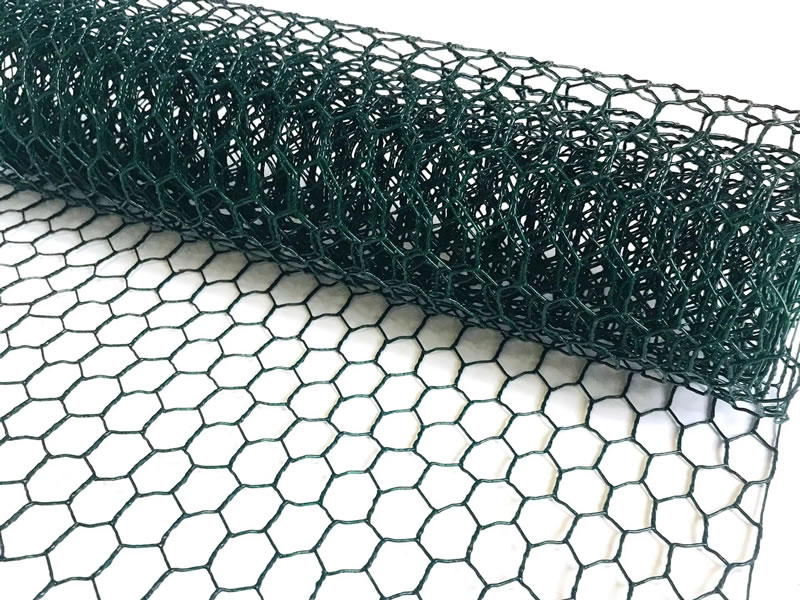

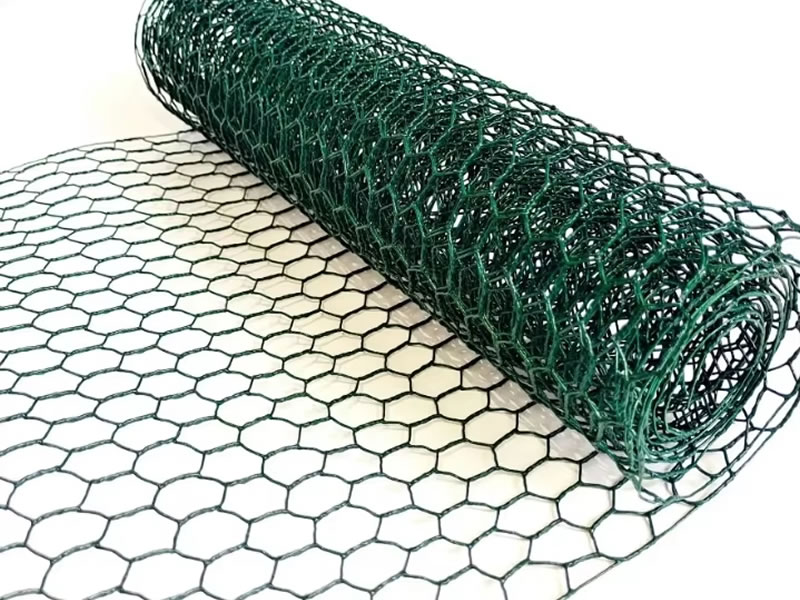

PVC coated hexagonal wire mesh is a wire mesh made of metal wire woven corner mesh (hexagonal), the use of metal wire diameter is different according to the size of the hexagonal.  hexagonal shaped meshes, formed by twisting adjacent wires two by two, alternatively forming a twist to the right and to the left; the netting may have a border composed of one, two or more selvedge wires with a greater diameter than that used for the net; And it is also known as wringing net, insulation net, soft edge net.

HuaCheng hexagonal netting consists of hexagonal shaped meshes, formed by twisting adjacent wires two by two, alternatively forming a twist to the right and to the left; the netting may have a border composed of one, two or more selvedge wires with a greater diameter than that used for the net; for widths above 50 cm or more stretching wires may be woven in the netting at equal distances.

Feature:
● Easy construction, no special techniques Strong corrosion resistance and weather resistance.
●Good stability and not easy collapse
●Good flexibility to increase the buffer force of objects
●Easy installation and saving transportation costs
●Long service life

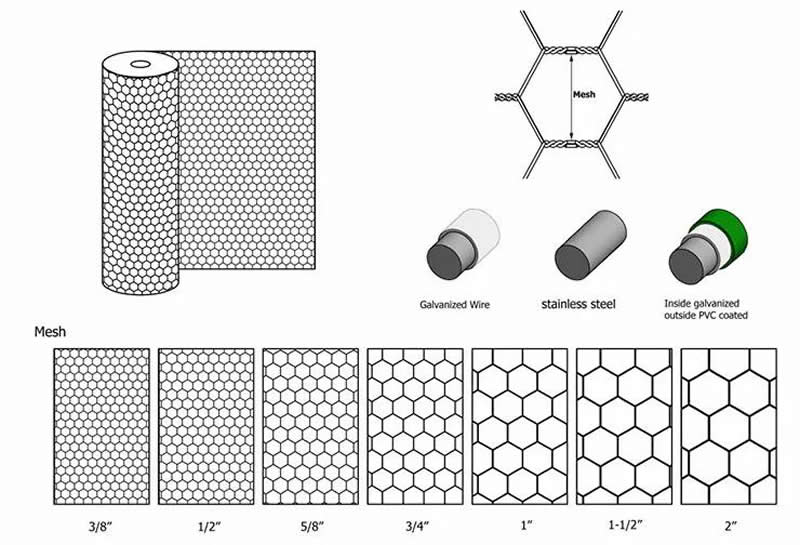

Specification

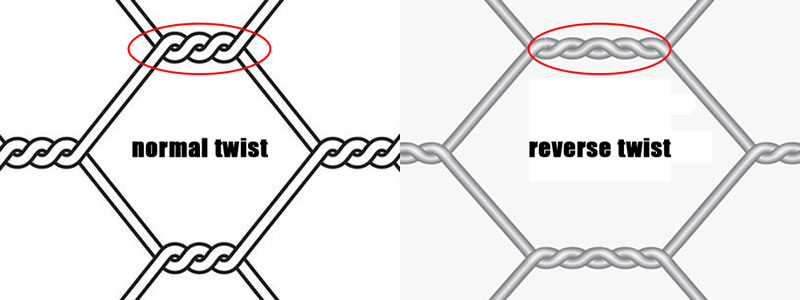

Woven types:

The wire of hexagonal mesh can be twisted in two ways.
Both of them can be used for a variety of purposes. The normal twist hexagonal mesh can be used as gabion mesh and made into mesh boxes for rocks. The reverse twist ones are generally used as animal fences.

PVC Coate

In terms of corrosion and rust protection, this treatment has almost the same effect as hot-dip galvanizing. Its advantage is its colorful appearance. It can be made in different colors on request. It is also basically simila in price to hot-dip galvanizing.

Galvanized hexagonal wire mesh in normal twist
Mesh size		Wire gauge (BWG)
3/8"	10mm	32, 31, 30, 29, 28, 27, 26, 25, 24, 23, 22, 21
1/2"	13mm	27, 26, 25, 24, 23, 22, 21, 20
5/8"	16mm	32, 31, 30, 29, 28, 27, 26, 25, 24, 23, 22, 21
3/4"	20mm	25, 24, 23, 22, 21, 20, 19
1"	25mm	27, 26, 25, 24, 23, 22, 21, 20, 19, 18
1-1/4"	32mm	23, 22, 21, 20, 19, 18
1-1/2"	40mm	23, 22, 21, 20, 19, 18, 17
2"	50mm	23, 22, 21, 20, 19, 18, 17, 16, 15, 14
2-1/2"	65mm	21, 20, 19, 18
3"	75mm	21, 20, 19, 18, 17, 16, 15, 14
4"	100mm	19, 18, 17, 16, 15, 14
Galvanized hexagonal wire mesh in reverse twist
Mesh size		Wire gauge (BWG)
1"	25mm	25, 24, 23, 22, 21, 20, 19, 18
1-1/4"	32mm	23, 22, 21, 20, 19, 18
1-1/2"	40mm	23, 22, 21, 20, 19, 18, 17
2"	50mm	23, 22, 21, 20, 19, 18, 17, 16
3"	75mm	20, 19, 18, 17, 16
PVC coate hexagonal wire mesh
Mesh size		Wire gauge (BWG)
3/8"	10mm	0.4mm, 0.5mm, 0.6mm, 0.8mm
1/2"	13mm	0.6mm, 0.8mm, 0.9mm, 1.0mm
5/8"	16mm	0.4mm, 0.5mm, 0.6mm, 0.8mm, 0.9mm, 1.0mm
3/4"	19mm	0.6mm, 0.8mm, 0.9mm, 1.0mm, 1.2mm
1"	25mm	0.7mm, 0.9mm, 1.0mm, 1.2mm, 1.4mm
1-1/4"	30mm	0.85mm, 1.0mm, 1.1mm, 1.3mm, 1.4mm
1-1/2"	40mm	0.8mm, 1.0mm, 1.2mm, 1.4mm, 1.6mm
2"	50mm	1.0mm, 1.2mm, 1.4mm, 1.6mm, 2.0mm

Feature:
● Easy construction, no special techniques Strong corrosion resistance and weather resistance.
● Good stability and not easy collapse
● Good flexibility to increase the buffer force of objects
● Easy installation and saving transportation costs
● Long service life
