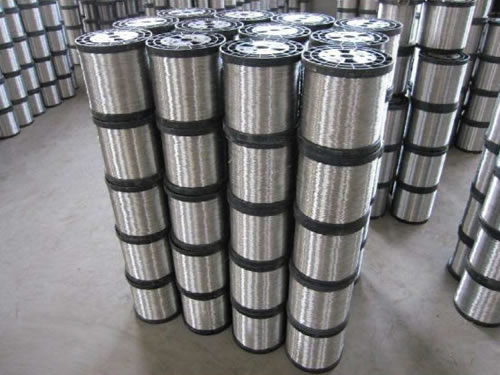

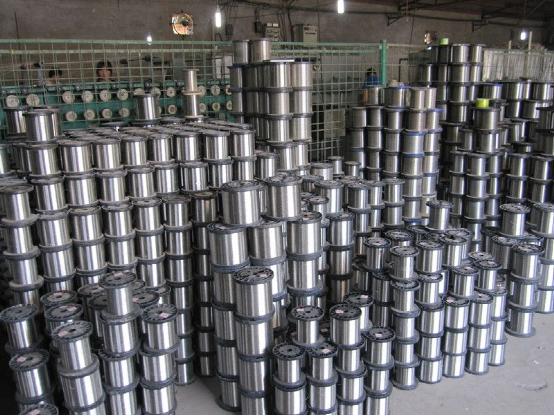

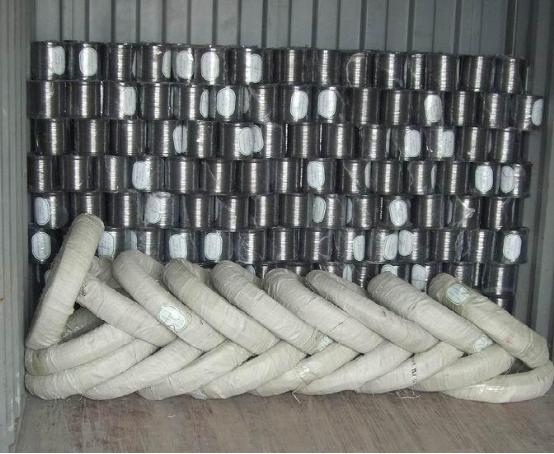

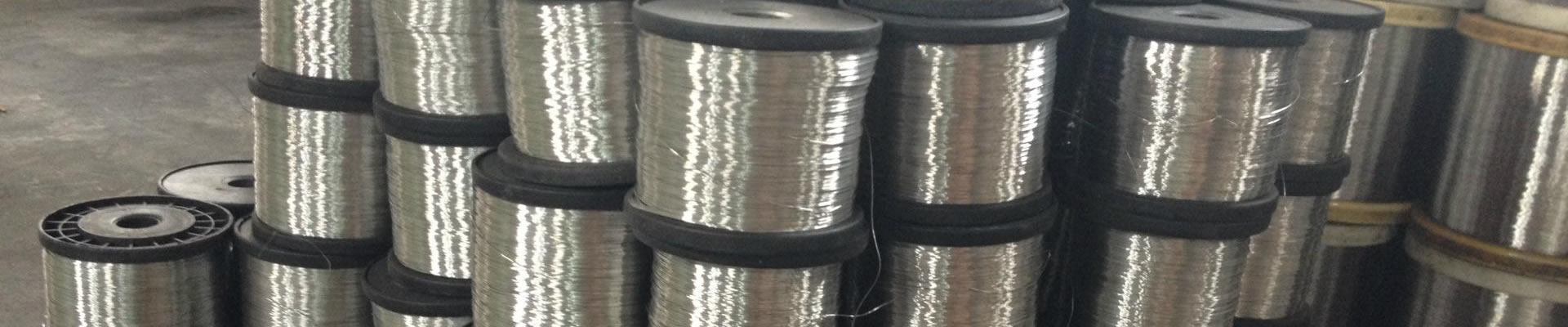

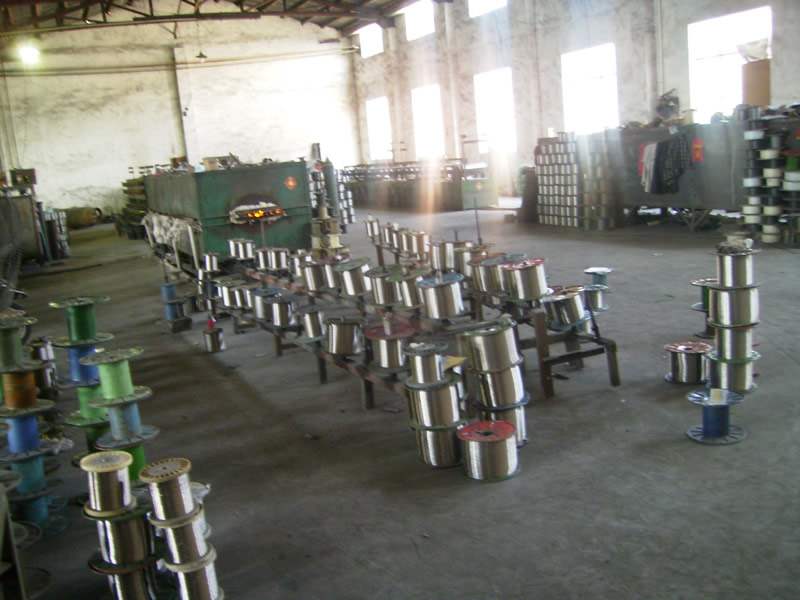

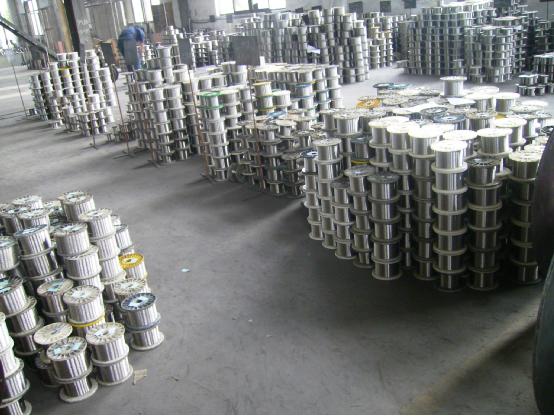

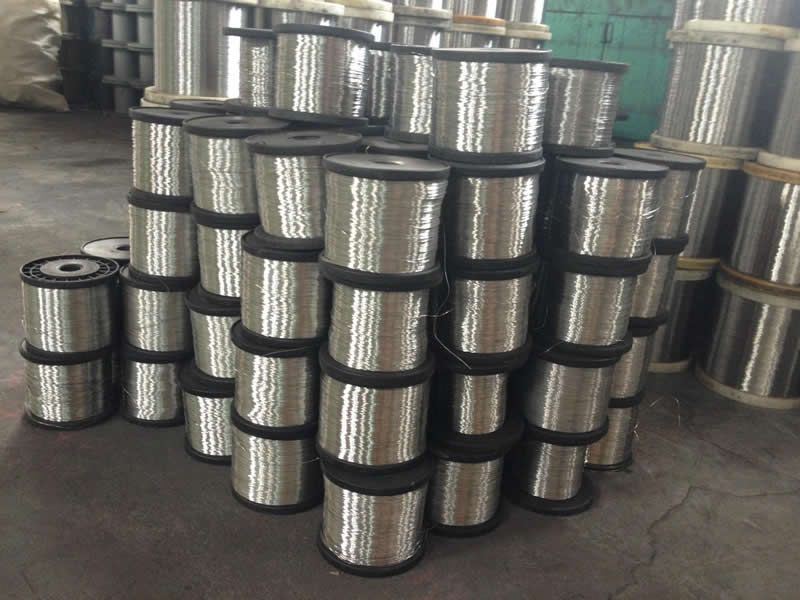

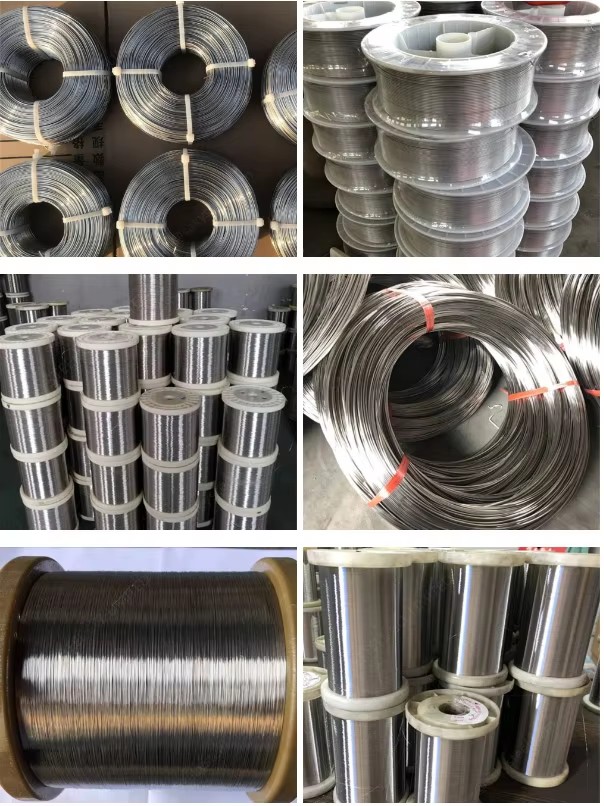

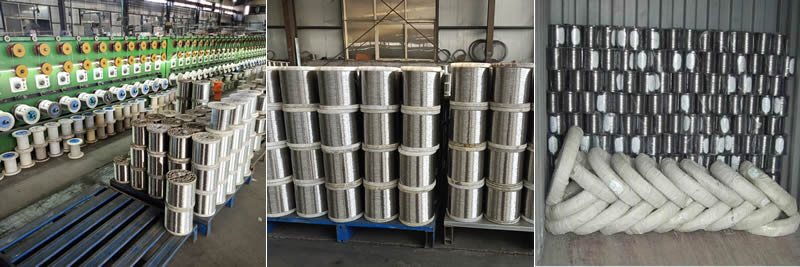

Stainless Steel Wire


Place of Origin: Anping County, Hebei Province,China
Brand Name: Huacheng Hardware Wire Mesh Supply
Elivery Time: 15days after deposit



Materials for Stainless Steel Wire: 304, 304L, 316, 316L.

Wire Diameter: 5mm to 0.025mm.

Peculiarity: Stainless Steel Wire enjoys many featues, such as wear-resistant, high intensity, small Stretch ability; because the fine wire, oil and ink is easy to pass; Mechanical and chemical Properties of wire mesh is stably, also the dimension definition is stably.

Applications: Stainless Steel Wire is used in wire-drawing, weaving of wire mesh, soft pipe, beam of cabinet, steel wire rope, filter material and equipment, spring, etc.

Wire Diameter(mm) Tolerance(mm) Max. Deviation Tolerance (mm)
0.020-0.049 +0.002/-0.001 0.001
0.050-0.074 ±0.002 0.002
0.075-0.089 ±0.002 0.002
0.090-0.109 +0.003/-0.002 0.002
0.110-0.169 ±0.003 0.003
0.170-0.184 ±0.004 0.004
0.185-0.199 ±0.004 0.004
0.200-0.299 ±0.005 0.005
0.300-0.310 ±0.006 0.006
0.320-0.499 ±0.006 0.006
